Product Details:
Thunderbolt 4 Certified – 40 Gbps Bandwidth
Experience unmatched performance with QZ’s next-generation Thunderbolt 4 Dock, certified by Thunderbolt for reliability and speed. Powered by the advanced Goshen Ridge chipset, it delivers an incredible 40 Gbps bandwidth—ideal for 8K video output, ultra-fast data transfer (up to 10 Gbps), and seamless multitasking on modern laptops and high-performance workstations.
Dual Thunderbolt 4 Ports (40 Gbps Max)
Equipped with 2 Thunderbolt 4 ports, the dock supports blazing-fast 40 Gbps data transfer, dual 4K/60Hz or a single 8K display output, and daisy-chaining of up to 6 Thunderbolt devices. Fully compatible with Thunderbolt 4/USB4 laptops, Thunderbolt 3 Macs (macOS 11+), and USB-C Windows PCs with DisplayPort Alt Mode.
Triple Display Support – Up to 8K Output
Boost productivity with support for up to three external displays.
- DisplayPorts x2 : Supports up to 8K/30Hz, 4K at 60/120/144Hz, and 1080p at 60/120/144/240Hz.
- HDMI x2: Supports 4K at 30/60Hz and 1080p at 60/120/144/240Hz.
Supports triple display in MST mode on Windows (up to 3 streams: 8K/30Hz, 2x 4K/60Hz, or 3x 4K with mixed refresh rates). Video output depends on host system capabilities.

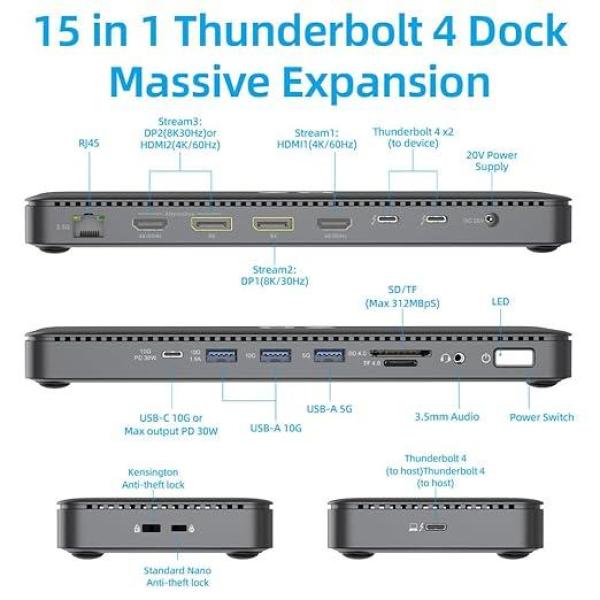

High-Speed Connectivity Ports
- USB-C (10 Gbps, PD 30W)
- USB 3.0 (5 Gbps)
- RJ45 Ethernet: Supports up to 2.5 Gbps network speed
- SD 4.0 & MicroSD 4.0 Slots: Up to 312 MB/s, dual card simultaneous access
- 3.5mm Audio Jack: Supports stereo output and microphone input
150W External Power Supply with Smart Distribution
The dock is powered by a robust 150W (20V) DC adapter (included) to ensure smooth operation of all connected devices. It provides:
- Up to 96W of power delivery to your laptop
- Up to 140W total to host + dock
Smart power management dynamically distributes power based on device needs, ensuring optimal performance and video quality.
